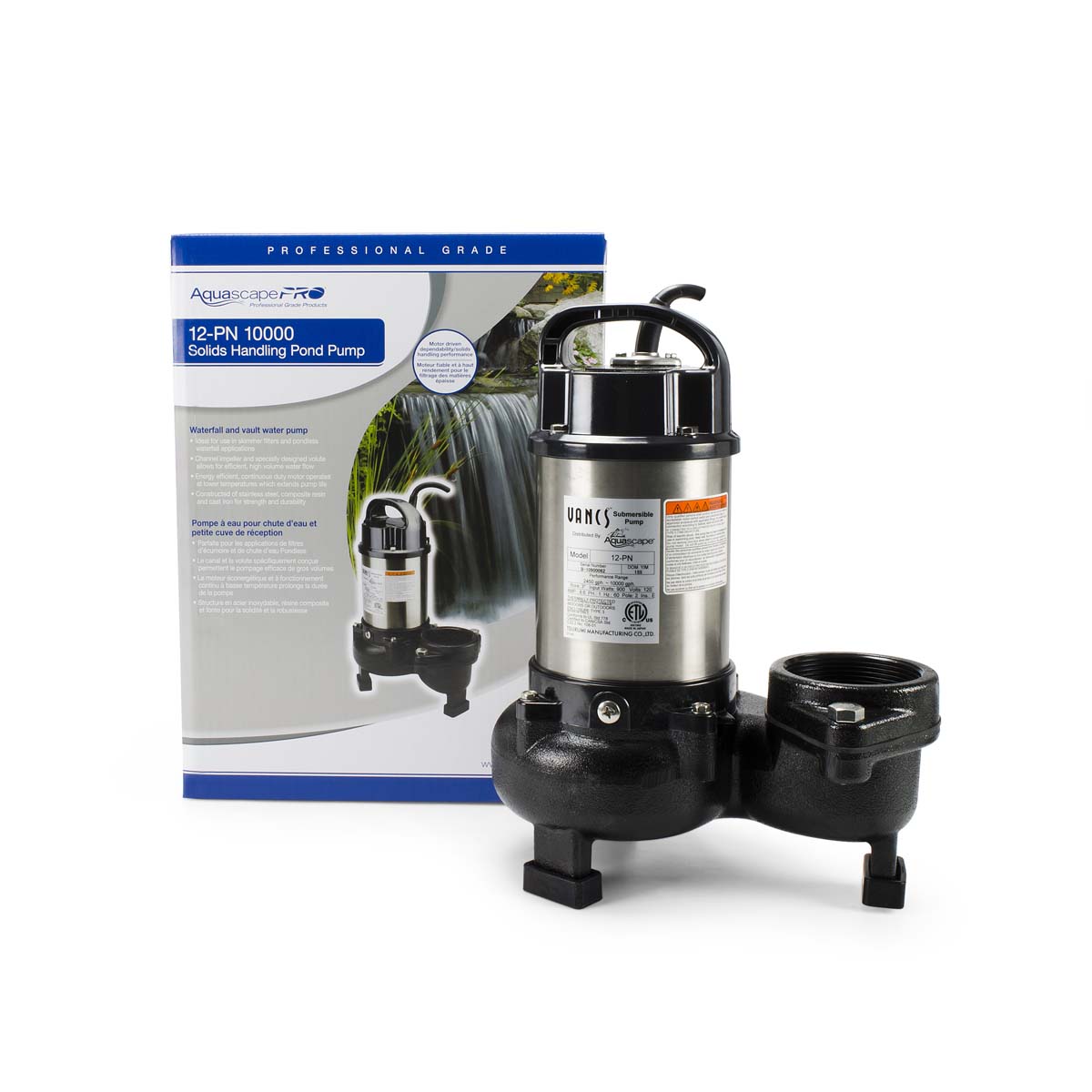

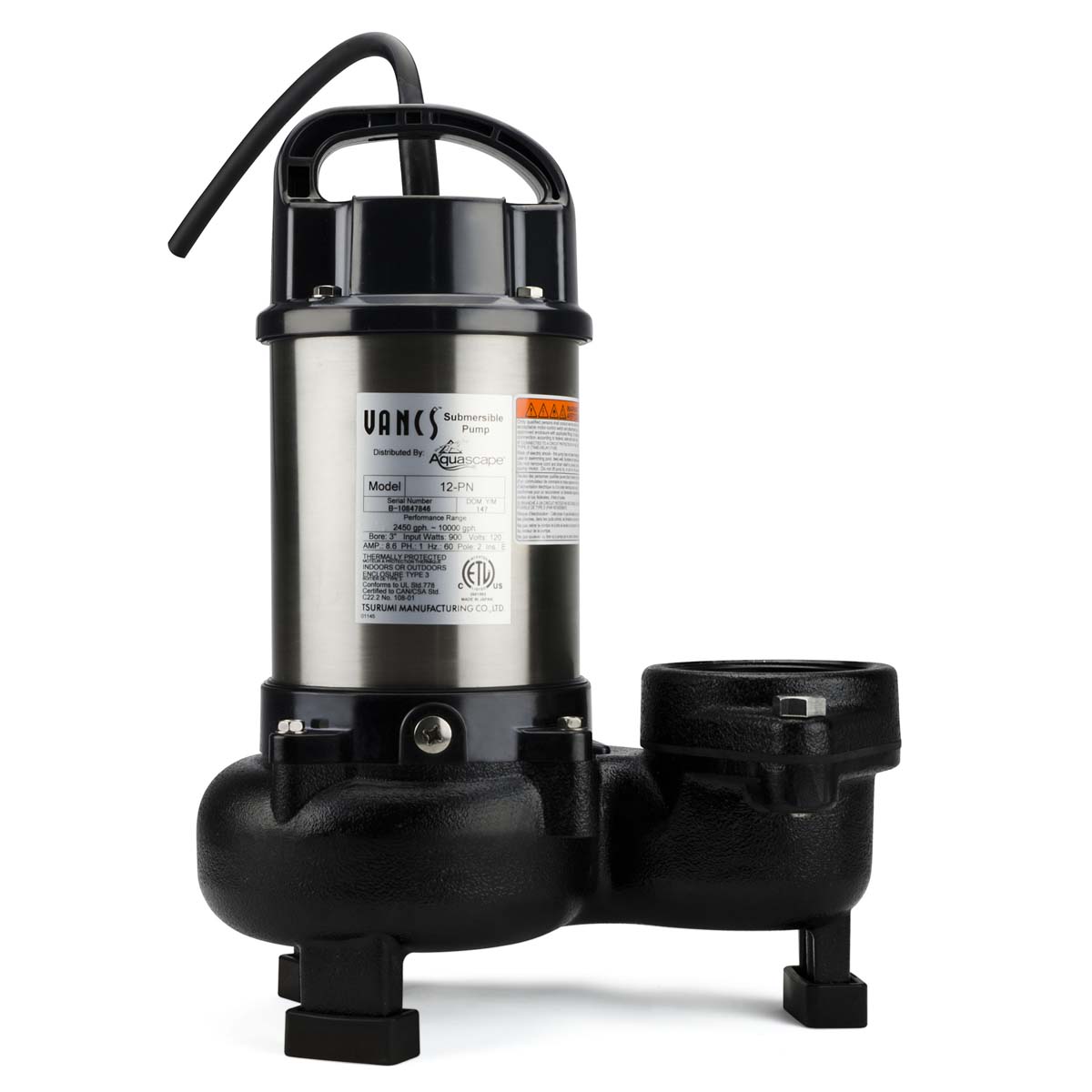

The 12-PN 10,000 Solids-Handling Pond Pump is ideal for use in ponds, disappearing waterfalls, and other water feature applications. Known for durability, performance, and value, the 12-PN is constructed of stainless steel and composite resin for strength and corrosion resistance. The pump has a maximum flow rate up to 10,000 gallons per hour and its semi-vortex impeller design enables the pump to handle solids effectively, resulting in less maintenance and trouble-free performance. The energy-efficient, continuous-duty, direct-drive motor operates at lower temperatures, extending the life of the pump significantly. The pump also contains a built-in thermal overload, protecting it from damage if ever run in low-water conditions. The 2″ threaded discharge makes installation quick and easy.
Pump Flow Chart – PL/PN
| Application Head Height | |||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Max Head Height | 0' | 5' | 10' | 15' | 20' | 25' | 30' | 35' | 40' | 45' | ||||||||||||||||||||||||||||||||||||
| 3-PL | 14' | 3000 | 1700 | ||||||||||||||||||||||||||||||||||||||||||||
| 5-PL | 23' | 5300 | 4500 | 3500 | 1800 | ||||||||||||||||||||||||||||||||||||||||||
| 9-PL | 35' | 7300 | 6400 | 5600 | 4900 | 4100 | 3000 | ||||||||||||||||||||||||||||||||||||||||
| 8-PN | 56' | 5500 | 5200 | 4800 | 4300 | 3600 | 2800 | 2000 | 1500 | ||||||||||||||||||||||||||||||||||||||
| 12-PN | 23' | 10000 | 7600 | 4600 | 1500 | ||||||||||||||||||||||||||||||||||||||||||
| ......................... | |||||||||||||||||||||||||||||||||||||||||||||||
| BEST Operating Zone (GPH) | MAX Operating Zone (GPH) | DO NOT Operate Zone (GPH) | |||||||||||||||||||||||||||||||||||||||||||||
PL and PN Comparison Guide
 |  |  |  |  | |
| 3-PL 3000 Solids-Handling Pump | 5-PL 5000 Solids-Handling Pump | 9-PL 7000 Solids-Handling Pump | 8-PN 5500 Solids-Handling Pump | 12-PN 10000 Solids-Handling Pump | |
| Model Number | 29975 | 29976 | 29977 | 29495 | 30391 |
| Max Flow Rate (GPH) | 3,300 | 5,300 | 7,300 | 5,548 | 10,000 |
| Adjustable Flow | - | - | - | - | - |
| Max Head Height | 14 Feet | 23 Feet | 35 Feet | 56 Feet | 23 Feet |
| Motor Type | Direct Drive | Direct Drive | Direct Drive | Direct Drive | Direct Drive |
| Wattage | 320 | 620 | 1,000 | 1,000 | 900 |
| Amperage | 3.1 | 5.6 | 8.6 | 9.1 | 9.1 |
| Power Cord Length | 20 Feet | 20 Feet | 20 Feet | 20 Feet | 20 Feet |
| Pump Discharge Diameter | 2 inch | 2 inch | 2 inch | 2 inch | 3 inch |
| Ideal Pipe Diameter | 1.5 or 2 inch | 2 or 3 inch | 2 or 3 inch | 2 or 3 inch | 3 inch |
| Pump Dimensions | 12.2 x 5.6 x 7.1 inches (LxWxH) | 13.2 x 5.9 x 7.3 inches (LxWxH) | 14 x 5.90 x 7.3 inches (LxWxH) | 9.3 x 6.4 x 15 inches (LxWxH) | 11.7 x 7.7 x 15.1 inches (LxWxH) |
| App/WIFI Connected | - | - | - | - | - |
| Warranty (Limited) | 2 years | 2 years | 2 years | 2 years | 2 years |
