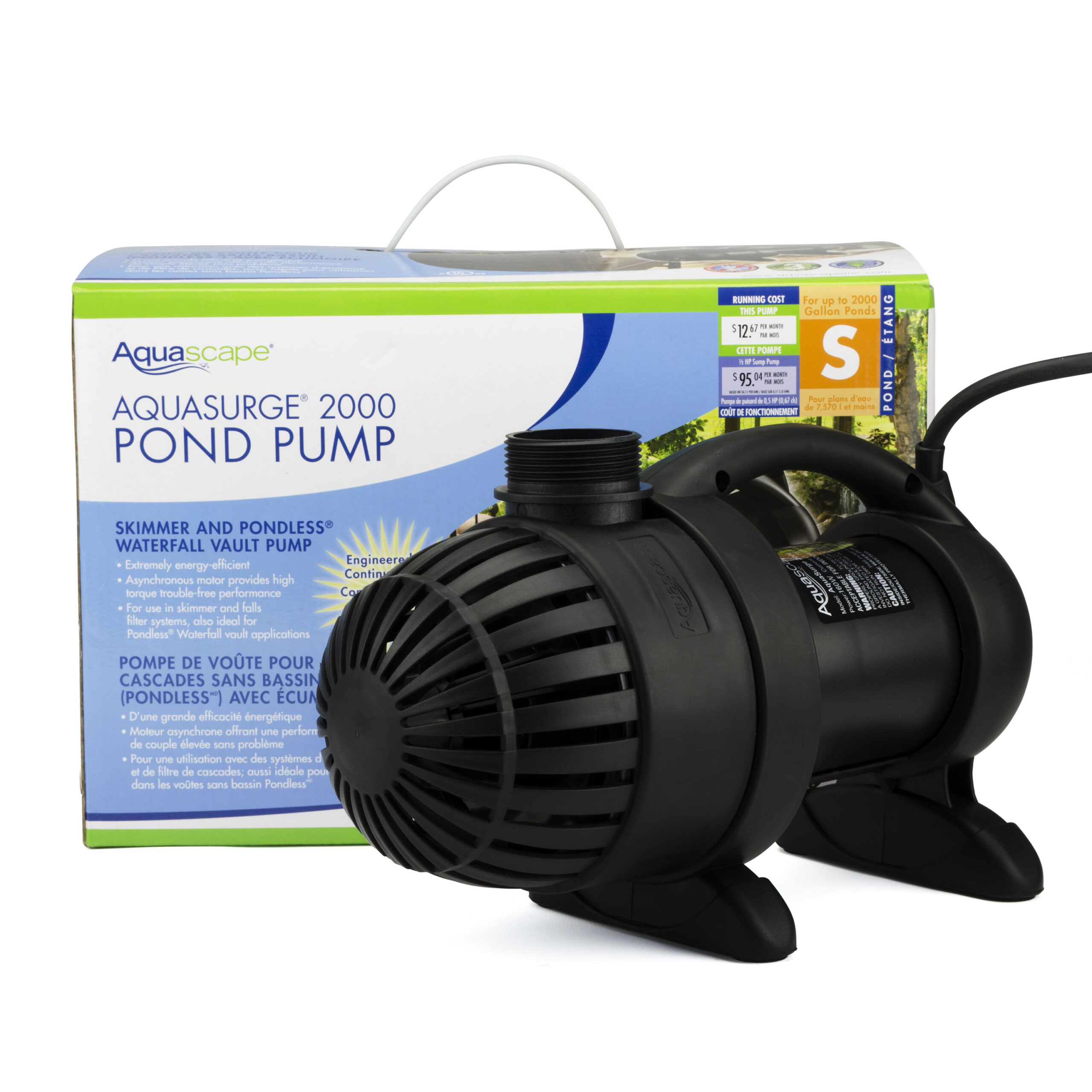

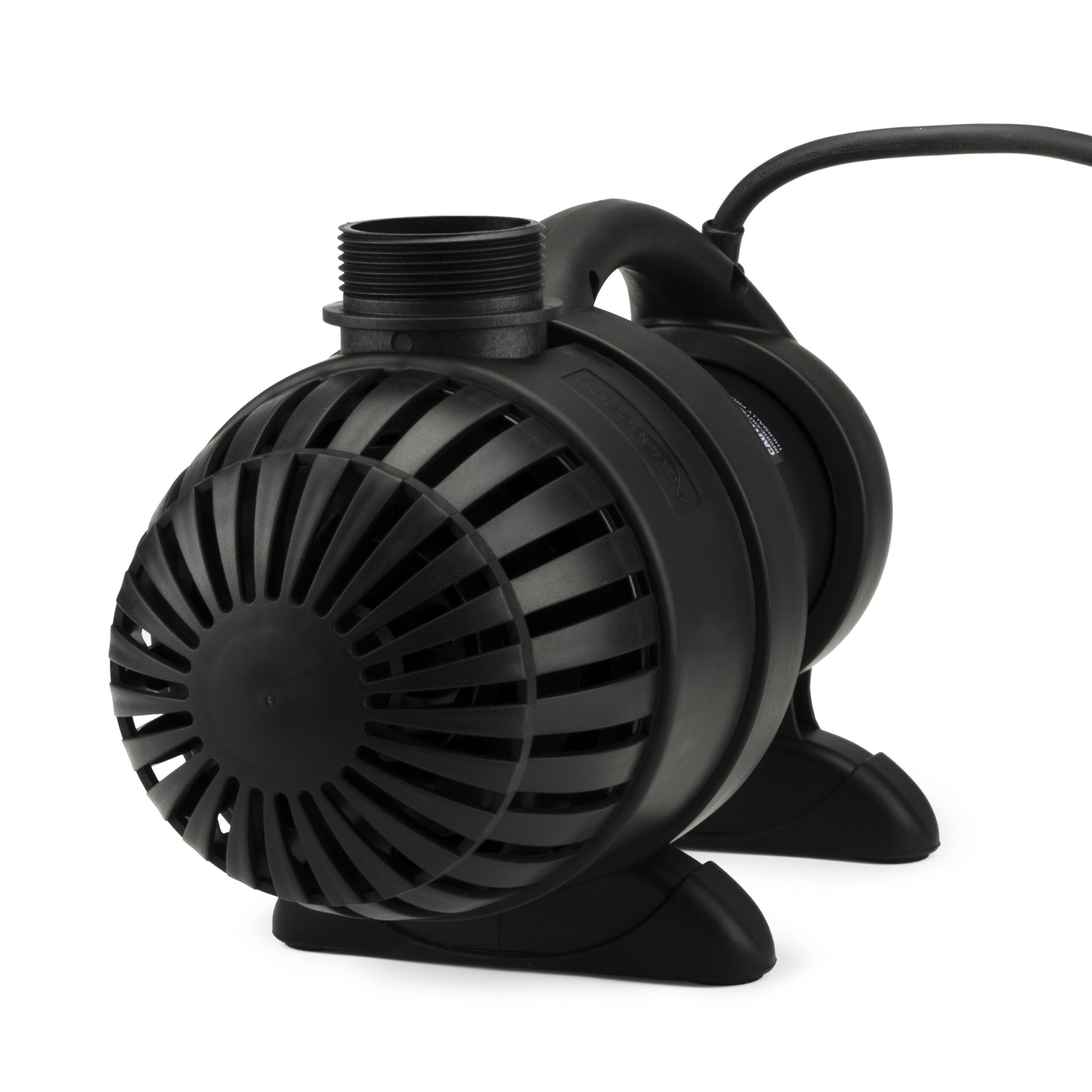

Not sure which pump is best for you? Check out our Pump Selection Guide. The AquaSurge® 2000 Pond Pump is ideal for use in ponds, disappearing waterfalls and other water feature applications. With a maximum flow rate of 2,000 gallons per hour, the pump is made for continuous use in either vertical or horizontal orientation inside a pond skimmer. Asynchronous motor technology makes this pump extremely energy efficient, saving you hundreds of dollars over traditional water pumps, and the oil-free design prevents pond contamination. A variety of fittings is included for simple installation, including a rotational ball output that allows the discharge position to be easily adjusted. The AquaSurge® 2000 Pond Pump will not corrode or rust, and its rubber feet will prevent noise and vibration while in use, making this the pump of choice for discriminating homeowners and pond professionals alike. View Instruction Manual Shop Replacement Parts
Pump Flow Chart – AquaSurge
Application Head Height | ||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | Max Head Height | 0' | 5' | 10' | 15' | 20' | 25' | 30' | ||||||||||||||||||||||||
2000 | 12.5' | 2193 | 1850 | 1465 | ||||||||||||||||||||||||||||
3000 | 15' | 3196 | 2700 | 2350 | ||||||||||||||||||||||||||||
4000 | 18.5' | 3947 | 3750 | 3350 | 2250 | |||||||||||||||||||||||||||
5000 | 24' | 5284 | 5000 | 4750 | 3250 | 1750 | ||||||||||||||||||||||||||
2000-4000 | 18.5' | 3947 | 3750 | 3350 | 2250 | |||||||||||||||||||||||||||
4000-8000 | 28' | 7793 | 7350 | 7000 | 5850 | 4300 | 2000 | |||||||||||||||||||||||||
.............................. | ||||||||||||||||||||||||||||||||
BEST Operating Zone (GPH) | MAX Operating Zone (GPH) |
AquaSurge Comparison Guide
AquaSurge 2000 | AquaSurge 3000 | AquaSurge 4000 | AquaSurge 5000 | AquaSurge Adjustable Flow Pond Pump 2000-4000 | AquaSurge Adjustable Flow Pond Pump 4000-8000 | |
Model Number | 91017 | 91018 | 91019 | 91020 | 45009 | 45010 |
Max Flow Rate (GPH) | 2193 | 3196 | 3947 | 5284 | 3947 | 7793 |
Adjustable Flow | - | - | - | - | Yes | Yes |
Max Head Height | 12.5 Feet | 15 Feet | 18.5 Feet | 24 Feet | 18.5 Feet | 28 Feet |
Motor Type | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
Wattage | 160 | 165 | 215 | 360 | 180 to 215 | 500 to 660 |
Amperage | 1.3 | 1.4 | 1.82 | 3 | 1.82 | 5.5 |
Power Cord Length | 20 Feet | 20 Feet | 20 Feet | 20 Feet | 20 Feet | 20 Feet |
Pump Discharge Diameter | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT |
Ideal Pipe Diameter | 1.5 or 2 inch | 1.5 or 2 inch | 1.5 or 2 inch | 2 inch | 1.5 or 2 inch | 2 or 3 inch |
Pump Dimensions | 12 x 5.5 x 7 inches (LxWxH) | 12 x 5.5 x 7 inches (LxWxH) | 14 x 6 x 7.5 inches (LxWxH) | 14 x 6 x 7.5 inches (LxWxH) | 14 x 6 x 7.5 inches (LxWxH) | 14 x 6 x 7.5 inches (LxWxH) |
App/WIFI Connected | - | - | - | - | Yes | Yes |
Warranty (Limited) | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
View Product | View Product | View Product | View Product | View Product | View Product |
